Function Overview

Wayline management is an important function of drone automatic operation, which can realize batch and intelligent operation in the industry. The cloud API provides relevant interfaces to implement the functions of issuing, executing, canceling, and progress reporting flight tasks. Users need to follow the Waypoint Markup Language (WPML) specification to write wayline file and define the wayline mission. Multiple waylines can be defined in one wayline mission.

For the wayline mission interface, the fields in the interface, and the explanation of the fields, please refer to the guide of "Detailed API Realization" on this page. If there is an error in the process of using the route management function, please check Error Code according to the returned error code.

Simulated Debugging

Wayline management newly supports simulated wayline flights. Once the simulator is enabled, the aircraft will go through the preparatory steps for the wayline mission, such as opening the dock cover and starting up. The aircraft will follow the specified longitude and latitude fields of simulate_mission API as the starting point data for the wayline execution, but aircraft will not actually take off. The aircraft's data during the execution of the task will be reported as usual via the osd.

Note: Simulated wayline mission will not enable RTK. After the simulated debugging, if outdoor wayline mission is going to execute, stable RTK signal should be obtained for normal and safe execution.

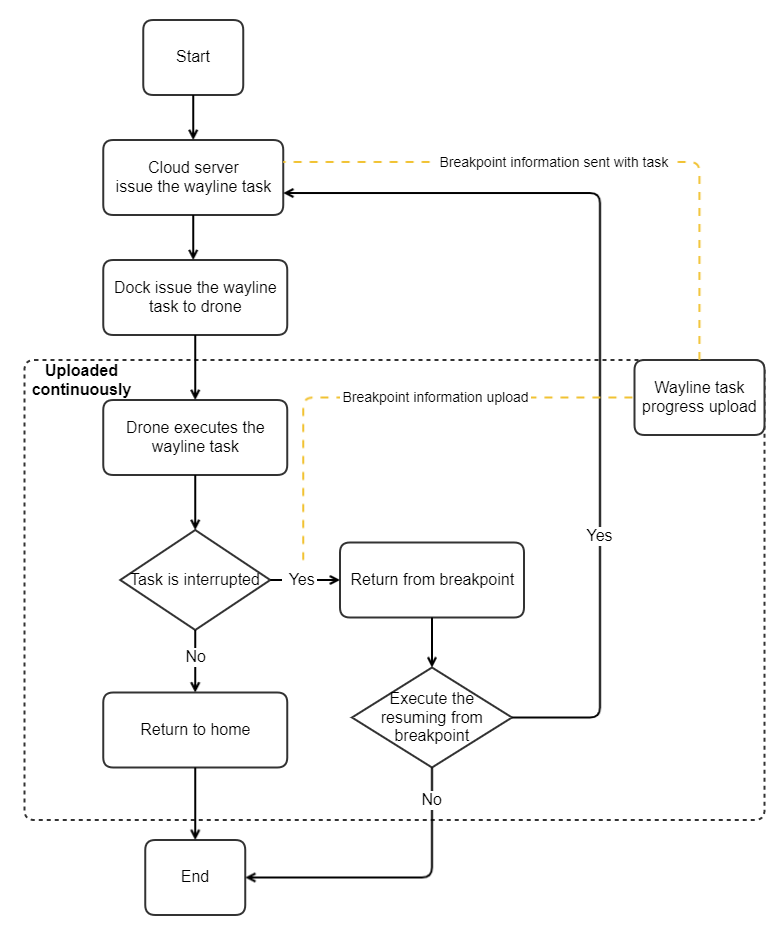

Resume from Breakpoint

If wayline mission can not be completed in one flight because of some reasons, for example, too long wayline mission, bad weather and manual break, resuming from breakpoint allows the task to restart from the breakpoint but not from the start.

• Return from the breakpoint:

Once the wayline mission is not finished, the breakpoint information will be recorded. During the wayline execution, the progress of wayline mission (Method: flighttask_progress) will be uploaded continuously, and the breakpoint information will be uploaded through this API. After the drone returns to the dock, the breakpoint information will be uploaded by dock to the cloud server for storage. Detailed breakpoint information can be seen from related breakpoint fields of Method: flighttask_progress API.

• Resume from the breakpoint:

If cloud server sends the mission of resuming from breakpoint, the issue wayline task API will contain related breakpoint fields. Dock provides the breakpoint information to the drone, then the drone flies to the breakpoint and continues the wayline mission. When resumes from the break point, the Safe takeoff altitude field (wpml:takeOffSecurityHeight)in KMZ file of wayline mission will be replaced by the height for RTH field (rth_altitude) in issue wayline mission API of MQTT protocol to avoid the possibility of crushing obstacle.

Interaction Sequence Diagram

Immediate Task and Timed Task

sequenceDiagram

participant object as Aircraft
participant client  as DJI Dock
participant server as Cloud Server

alt Timed task, the execution time is more than 24 hours later than the current time
note over object,server: Wait until 24 hours before the execution time
else Timed task, the execution time is less than or equal to 24 hours from the current time
note over object,server: No wait
else Immediate task
note over object,server: No wait
end

server ->> client: Issue wayline mission Topic:thing/product/{gateway_sn}/services<br/>Method: flighttask_prepare
client -->> server: Device response Topic:thing/product/{gateway_sn}/services_reply<br/>Method: flighttask_prepare

alt Timed task, the execution time is more than 2 minutes later than the current time
note over object,server: Wait until 2 minutes before the execution time
else Timed task, the execution time is less than or equal to 2 minutes from the current time
note over object,server: No wait
else Immediate task
note over object,server: No wait
end

note over object,server: Turn on the aircraft, search for satellite positioning, and upload waylines
server ->> client: Execute wayline mission Topic:thing/product/{gateway_sn}/services<br/>Method: flighttask_execute
object ->> object: wayline mission execution
client -->> server: Device response Topic:thing/product/{gateway_sn}/services_reply<br/>Method: flighttask_execute


client ->> server: Get the wayline mission resource Topic: thing/product/{gateway_sn}/requests<br/>Method: flighttask_resource_get
server -->> client: Server response Topic: thing/product/{gateway_sn}/requests_reply<br/>Method: flighttask_resource_get


client ->> server: Report the wayline mission progress Topic:thing/product/{gateway_sn}/events<br/>Method: flighttask_progress
server -->> client: Server response Topic:thing/product/{gateway_sn}/events_reply<br/>Method: flighttask_progress

opt
server ->> client: Cancel wayline mission Topic:thing/product/{gateway_sn}/services<br/>Method: flighttask_undo
client -->> server: Device response Topic:thing/product/{gateway_sn}/services_reply<br/>Method: flighttask_undo
end

Conditional Task

sequenceDiagram

participant object as Aircraft
participant client as DJI Dock
participant server as Cloud Server

server ->> client: Issue task Topic:thing/product/{gateway_sn}/services<br/>Method: flighttask_prepare
client -->> server: Device response Topic:thing/product/{gateway_sn}/services_reply<br/>Method: flighttask_prepare

opt `ready_conditions` All conditions for task readiness are satisfied
client ->> server: Notification of task readiness Topic: thing/product/{gateway_sn}/events<br/>Method: flighttask_ready
server -->> client: Server response Topic: thing/product/{gateway_sn}/events_reply<br/>Method: flighttask_ready
end

server ->> client: Execute task Topic:thing/product/{gateway_sn}/services<br/>Method: flighttask_execute
opt All conditions for task execution (executable_conditions) are satisfied. <br/> If there is no `executable_conditions`, it means there is no execution condition for this task.
note over object: wayline mission is executing
client -->> server: Device response Topic:thing/product/{gateway_sn}/services_reply<br/>Method: flighttask_execute
end

note over object, server: For `flighttask_resource_get`,<br/>`flighttask_progress`,<br/> and `flighttask_undo` APIs,<br/> please read the "Immediate Task and Timed Task" on this page.

Detailed API Realization

Notes:

• We have deprecated the Create wayline task interface, please use the Issue wayline task interface with the Execute wayline task interface.

• If the task type of task_type is specified as "execute immediately", the device side limits the time error of 30s. If the difference between the time when the device receives the command and the execute_time exceeds 30s, an error will be reported and the task cannot be executed normally.

• If the device is in the process of executing the route task and receives the command to execute the route task again, the route task received again will not be executed and the device will report an error.

Wayline Management (MQTT)

• Notification of device exiting the RTH

  • Entering the "RTH exiting state" means that the aircraft exits the RTH process due to one of the reasons in the reason field of Cloud API. Exiting the "RTH exiting state" means the aircraft stop the exiting process.

  • It is used to notify the "RTH exiting state". If obstacle avoidance is triggered when device completes the task and returns, device will enter the "RTH exiting state". To avoid device destruction, users should be notified to send RTH command to bring the device out of the "RTH exiting state".

• Report the wayline mission progress Route task execution progress can be reported, and the reported information includes progress information and expansion information.

• Notification of task readiness After the conditional task is issued, the device will frequently check whether the ready_conditions is met. If all conditions are met, flighttask_ready will be sent.

• Create wayline mission (Deprecated)

• Issue wayline mission The concept of "pre-release" is currently added to the route management. The "pre-release" of wayline mission leaves more time for DJI Dock and aircraft to prepare. After the Issue wayline task interface is called, the Execute wayline task interface needs to be called to execute. In the Issue wayline task interface, assign a flight_id to the route task. With the flight_id field, you can execute, cancel, and obtain task resources for the specified route task.

• Execute wayline mission

• Cancel wayline mission Cancel wayline missions in a patch is supported. Cancel wayline task is used to cancel the assignment of wayline mission. The executing wayline mission can not be canceled by this interface.

• Get the wayline mission resource Get the wayline mission resource will return the wayline file information of the flight_id corresponding wayline mission.
